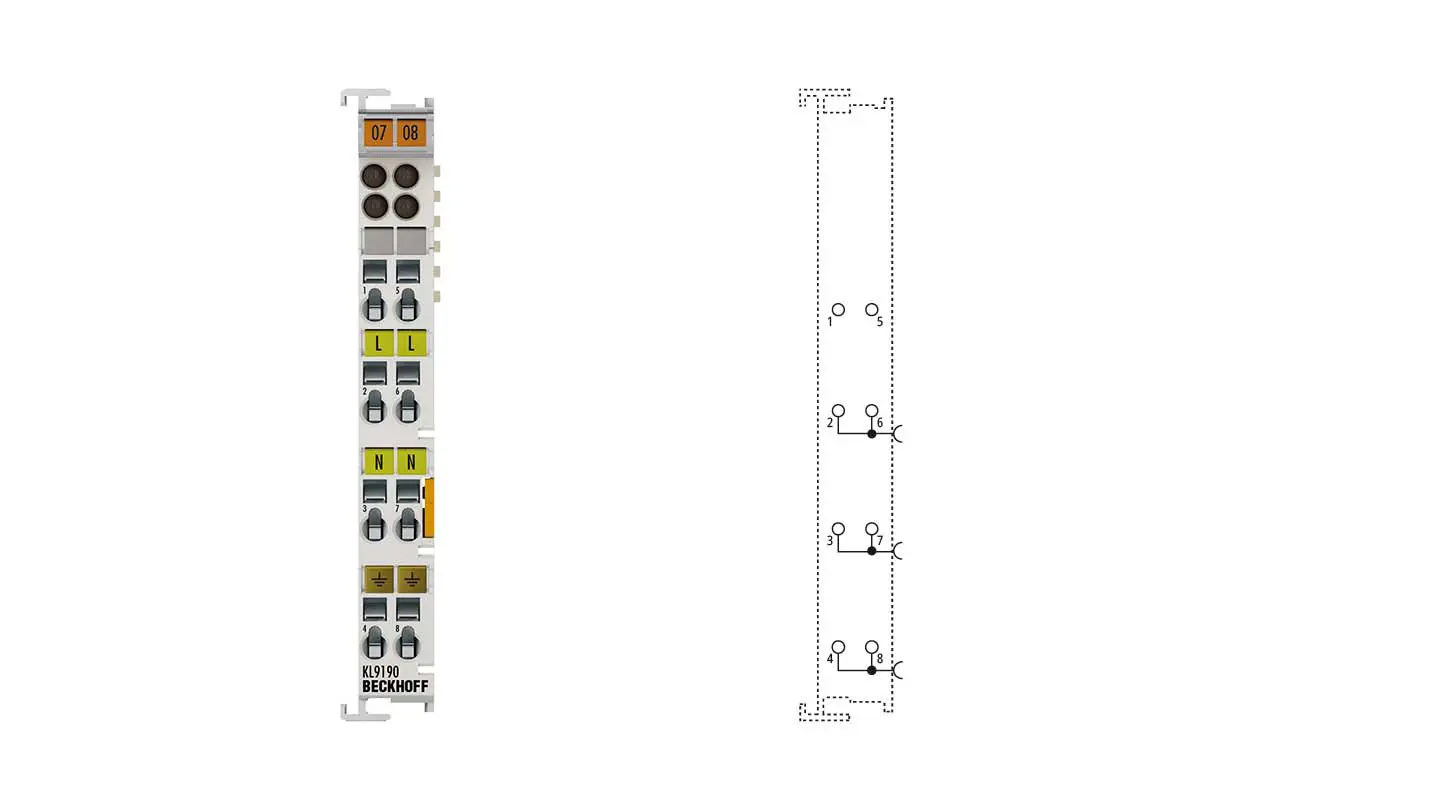

KL9190 | Potential supply terminal, any voltage up to 230 V AC
ترمینال تغذیه ولتاژ، هر ولتاژی تا ۲۳۰ ولت AC
ترمینال تغذیه برق KL9190 امکان تنظیم گروههای پتانسیل مختلف با هر ولتاژ دلخواه تا 230 ولت AC را فراهم میکند.
توضیحات
| Technical data | KL9190 |
|---|---|
| Current load | ≤ 10 A |
| Integrated fine-wire fuse | – |
| Power LED | – |
| Defect LED | – |
| Diagnostics | – |
| Current consumption K-bus | – |
| Nominal voltage | arbitrary |
| Electrical isolation | yes |
| Reported to K-bus | – |
| Shield connection | – |
| Renewed infeed | yes |
| Connection facility to additional power contact | 1 |
| K-bus, looped through | yes |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | – |
| Housing width | 12 mm |
| Weight | approx. 50 g |
| Side by side mounting on Bus Terminals with power contact | yes |
| Side by side mounting on Bus Terminals without power contact | yes |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
